PDA-8G

• Calculates bearing capacity and assesses structural integrity
• Thin, light, rugged, ergonomic design
• Up to 16 channels of data acquisition
• Universal acquisition channels
• Smart sensor technology
• Unified operating system
• Optional add on-software for DLT and SPT capabilities
• Remote testing capability with SiteLink^® Technology

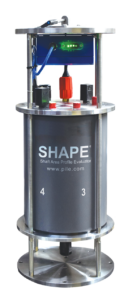

SHAPE^®

• Determines shaft verticality and radius
• Rapidly scans borehole (1ft/second)
• Automatically adjusts for changes in wave speed
• Tests both wet and dry excavations
• Remote testing capability with SiteLink^® Technology

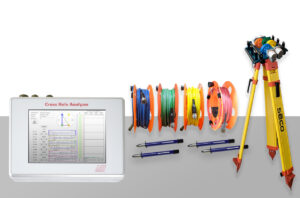

CHAMP-Q™

• Evaluates concrete quality with the crosshole sonic logging method
• Available in 2-channel and 4-channel systems
• Four universal transceivers collect data simultaneously, significantly reducing collection time
• Collects 6 profiles with a single pull (4-channel system)
• Color-coded transceiver cables for user-friendly configuration connections
• Tripod or Encoder-at-Pile set-up options
• Seamless, one-step, 3D Tomographic analysis with PDI-TOMO

PIT-Q

• Reveals potential shaft or pile defects such as major cracks, necking, soil inclusions or voids
• Determines unknown foundation lengths
• Tests multiple piles in one day
• Available in 3 versions: velocity only, force and velocity, or 2-velocity channels
• Optional Parallel Seismic capability available
